Cynomolgus PD-1/PDCD1 Protein

Name: Cynomolgus PD-1/PDCD1 Protein
Brand: Puweituo Bio
SKU: PD1-CP001

Catalog numberPD1-CP001

HEK293Molecule · PDCD1Molecular weight · 17.53 kDa

Product introduction

Recombinant Cynomolgus PD-1/PDCD1 Protein is expressed in HEK293 cells with a His tag at the C-terminus. It contains amino acid residues Pro21-Gln167 (accession: B0LAJ3).

Product details

Molecular aliases: PDCD1; PD1; CD279; SLEB2; PD-1
Protein length: Pro21-Gln167
Expression system: HEK293
Molecular weight: The protein has a predicted MW of 17.53 kDa. Due to glycosylation, the protein migrates to 40-50 kDa based on Bis-Tris PAGE result.
Purity: > 95% as determined by Bis-Tris PAGE > 95% as determined by HPLC
Endotoxin: Less than 1 EU per μg by the LAL method.
Formulation: Lyophilized from 0.22μm filtered solution in PBS (pH 7.4). Normally 8% trehalose is added as protectant before lyophilization.
State: Lyophilized
Storage: -20 to -80°C for 12 months as supplied from date of receipt. -80°C for 3 months after reconstitution. Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.
Reconstitution: Dissolve the lyophilized protein in distilled water. Please refer to the Certificate of Analysis for detailed instructions.

Data display

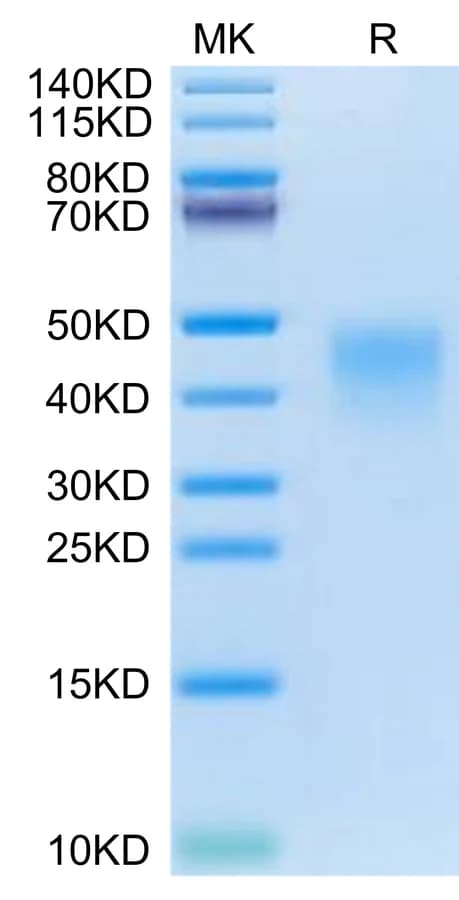

Bis-Tris PAGE Data — Cynomolgus PD-1 on Bis-Tris PAGE under reduced condition. The purity is greater than 95%.

SEC-HPLC Data — The purity of Cynomolgus PD-1 is greater than 95% as determined by SEC-HPLC.

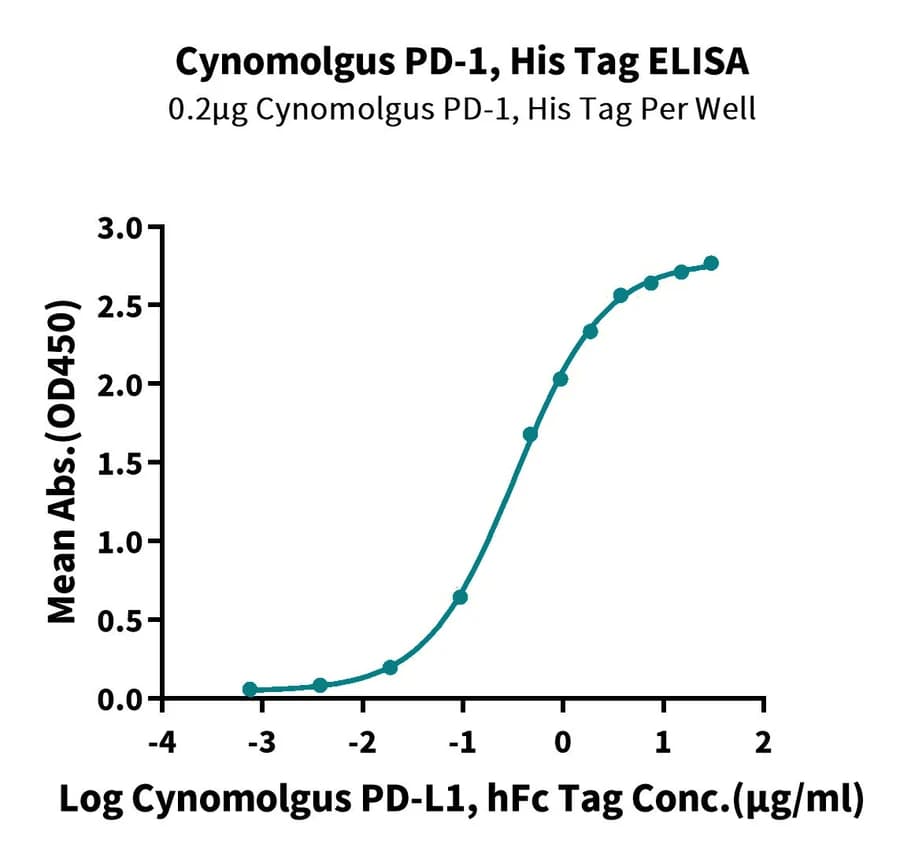

ELISA Data — Immobilized Cynomolgus PD-1, His Tag at 2μg/ml (100μl/well) on the plate. Dose response curve for Cynomolgus PD-L1, hFc Tag with the EC50 of 0.33μg/ml determined by ELISA. (QC Test)

Background

Programmed cell death protein 1, also known as PD-1 and CD279, is a protein found on the surface of cells that has a role in regulating the immune system's response to the cells of the human body by down-regulating the immune system and promoting self tolerance by suppressing T cell inflammatory activity.

References

1.Blank C, Mackensen A. Contribution of the PD-L1/PD-1 pathway to T-cell exhaustion: an update on implications for chronic infections and tumor evasion[J]. Cancer Immunology Immunotherapy, 2007, 56(5):739-745. Note: HPLC results always come from liquid protein, due to absorption peak interference of trehalose in lyophilized powder.
